Spherical Disc Springs / DIN 2093 Group B · spherical +1 (S/R) convex
250.00*127.00*9.40*17.00
Dimensions, standards and downloadable engineering files are generated from published product data.
- Outside diameter De
- 250.00 mm
- Inside diameter Di
- 127.00 mm
- Product thickness t′
- 9.40 mm
- Calculation reference thickness t
- 10.00 mm
- Free height l₀
- 17.00 mm
- Cone height h₀
- 7.00 mm
- Standard
- DIN 2093 dimensions / spherical +1 (S)
- Material / surface treatment
- 50CrVA (BLACK_OXIDE)
- Temperature
- -50 – 300 °C
ENGINEERING FILES
CAD / DXF / STEP
Repository CAD · member download

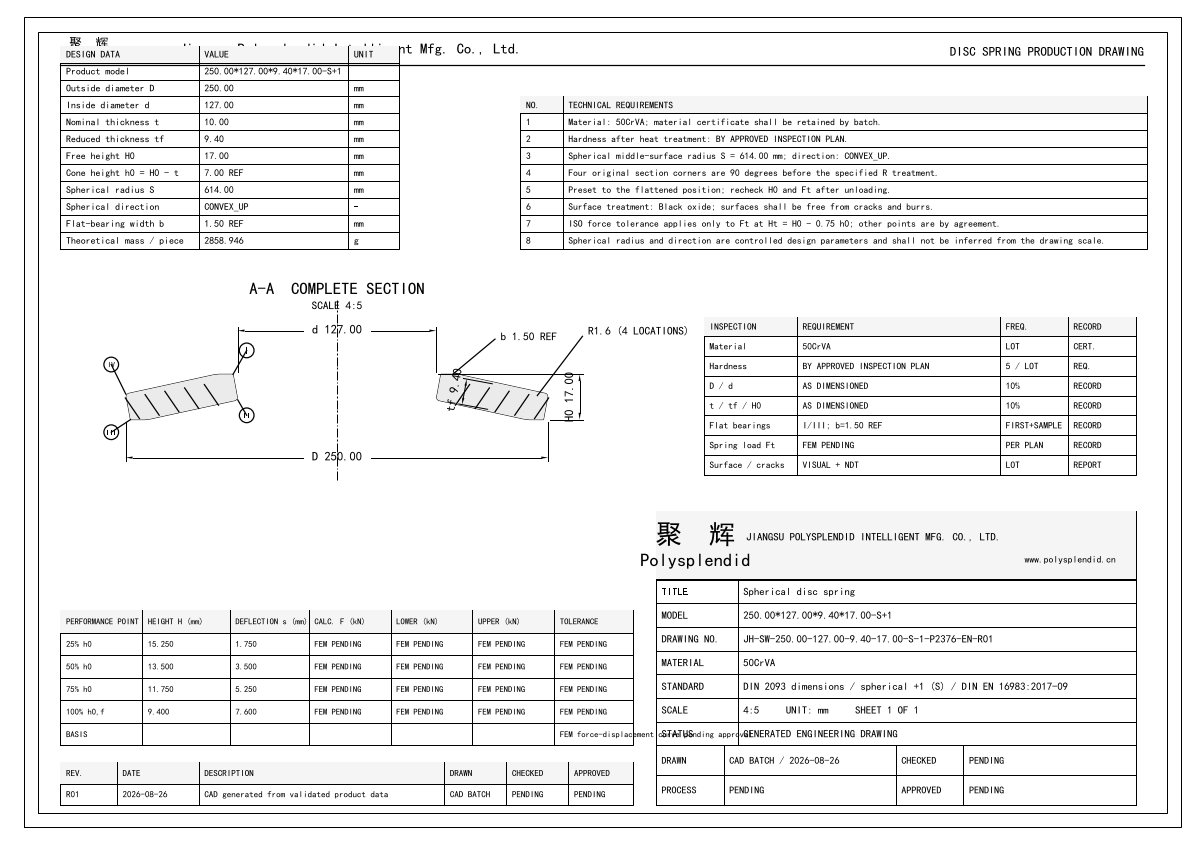

Open full drawing previewDWG250.00*127.00*9.40*17.00-S+1 DWG CADJH-SW-250.00-127.00-9.40-17.00-S-1-P2376-EN-R01.dwg · 52 KB
Member downloadDXF250.00*127.00*9.40*17.00-S+1 DXF CADJH-SW-250.00-127.00-9.40-17.00-S-1-P2376-EN-R01.dxf · 131 KB
Member downloadSTEP250.00*127.00*9.40*17.00-S+1 STEP CADJH-SW-250.00-127.00-9.40-17.00-S-1-P2376-R01.step · 26 KB
Member downloadSTL250.00*127.00*9.40*17.00-S+1 STL CADJH-SW-250.00-127.00-9.40-17.00-S-1-P2376-R01.stl · 966 KB
Member downloadSPECIAL SURFACE GEOMETRY
Special-surface definition
spherical-midline-v1 · AThe meridian is defined by the mid-surface spherical radius S (R) and its orientation.
- Surface family
- Spherical Disc Springs
- Design code
- SPH-S+1-P562
- D
- 250.00 mm
- d
- 127.00 mm
- t
- 9.40 mm
- H₀
- 17.00 mm
- RI
- 0 mm
- RII
- 0 mm
- RIII
- 0 mm
- RIV
- 0 mm
- Mid-surface spherical radius S (R)
- 614 mm
- Camber ratio gamma_W (design rule)
- 0.11
- Spherical orientation
- Convex
- CAD geometry status
- defined
- FEM validation status
- not_started
Only geometry revisions linked to a formal product, technically approved and published are shown. FEM status alone is not a performance claim.
ENGINEERING OVERVIEW
Candidate decision overview
Data version 3GEOMETRY CONTRACTspherical-contact-flats
- Bearing surfaces
- Yes
- Tolerance grade
- See dossier / confirm
Special surface parameters must be reviewed against the released drawing; the profile name alone is not a complete geometry definition.
EVIDENCE COVERAGE—Manufacturer curve / stressNot public—Polysplendid calculationsNot public—Resolved standardsNot public—Inspection dossierNot public—Approved product FEMNot public
A missing FEM record is not evidence of failed validation. It means no approved product-level study is public on this page.
COMBINATION BOUNDARYCheck single disc before stack
Parallel stacks primarily multiply load; series stacks primarily multiply travel. Friction, contact, guidance, preload and manufacturing scatter must be checked separately.
